ZHE-75Q Mud Pump For Trenchless Construction

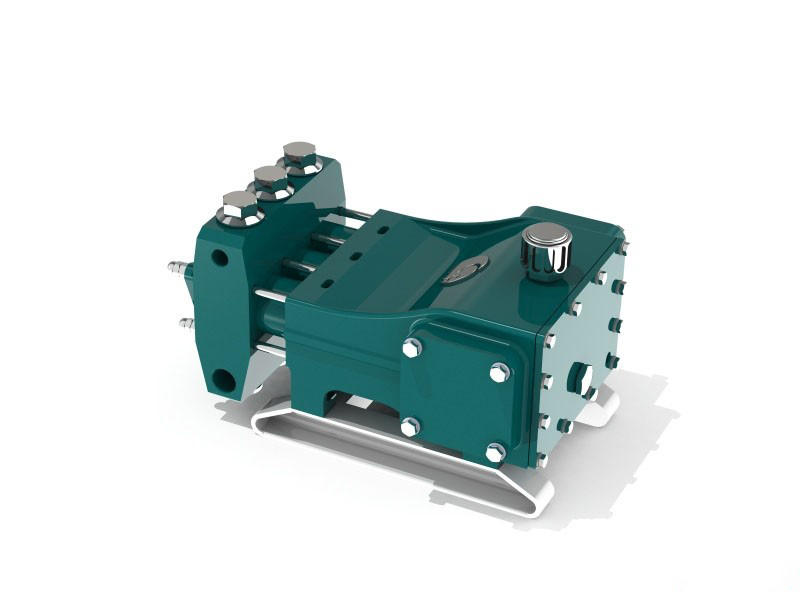

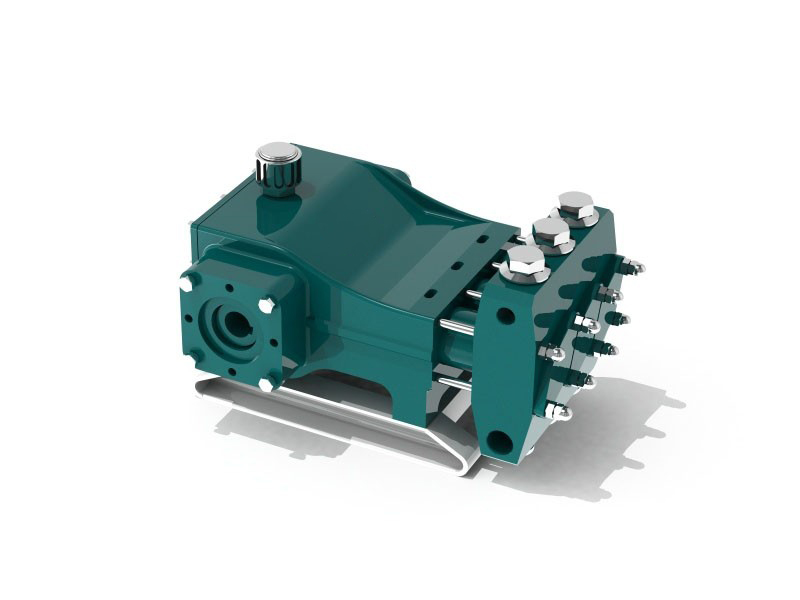

ZHE-75Q hydraulic drive mud pump is a horizontal, triplex, single acting reciprocation piston/plunger pump.
| Model : | ZHE-75Q |
| Type : | Hydraulic Mud Pump |
| Stroke : | 40 |
| Cylinder Diameter : | 50 |
| Flow : | 75 L/min |
| Pressure : | 6 Mpa |
| Shipping Port : | Shanghai Port, China |
| Warranty : | 12 Months |
Product Details
The ZHE-75Q Series pump is a single acting triplex reciprocating pump (plunger pump or piston pump) driven by a hydraulic motor. This series of pumps has stepless speed regulation and can achieve a variety of flows and pressures matching. The BW series pump adopts new concepts in design.
Technical Parameters and Specifications:
| Type | Horizontal Triplex Reciprocating Single Acting Piston / Plunger Mud Pump |
| Stroke (mm) | 40 |
| Cyclinder Diameter (mm) | 50 |
| Flow ( L/min) | 75 |
| Pressure (Mpa) | 6 |
| Input Speed (r/min) | 320 |
| Input Power (KW) | 9 |
| Dimensions (mm) | 461*517*254 |
| Weight (kg) | 72 |
Advantages:
1 – Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.
- Production Team：guaranting the production time and the quality, never late for shipment.
- Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
2 – Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

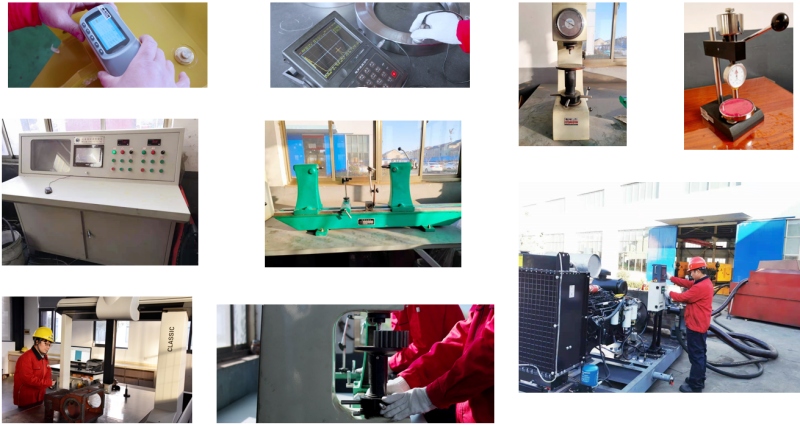

3- Advanced and professional testing and inspection equipment.
